• (6) speakers
• 10-way pwr driver seat
• 115V auxiliary pwr outlet
• 120-MPH primary speedometer
• 12V auxiliary pwr outlet
• 2nd row in-floor storage bins
• Air conditioning
• Audio input jack
• Auto-dimming rearview mirror
• Carpeted floor covering
• Chrome accent shift knob
• Color-keyed instrument panel bezel
• Driver/passenger assist handles
• Dual illuminated visor vanity mirrors
• Fixed long mast antenna
• Front center seat cushion storage
• Front/rear floor mats
• Instrument cluster w/display screen
• Leather-wrapped steering wheel
• LED interior lighting
• Mini floor console
• Outside temp gauge & compass
• Overhead console w/universal garage door opener
• Premium vinyl door trim panel w/map pockets
• Pwr accessory delay
• Pwr locks
• Pwr windows w/front one-touch up/down
• Rear 60/40 split-folding bench seat
• Rear dome lamp w/on/off switch
• Rear underseat compartment storage
• Remote keyless entry
• Sentry Key theft-deterrent system
• SIRIUS satellite radio (subscription required)
• Speed control
• Steering wheel audio controls
• Tilt steering column
• Traveler/mini trip computer
• Uconnect 130 -inc: AM/FM stereo w/CD/MP3 player
• Vehicle info center

• 160-amp alternator
• 7-pin trailer wiring harness
• 730-amp maintenance-free battery
• 8' pickup box
• Anti-spin rear axle differential
• Class IV Receiver Hitch
• Diesel exhaust brake
• Electronically-controlled throttle
• Front stabilizer bar
• HD front shock absorbers
• HD rear shock absorbers
• Pwr 4-wheel anti-lock disc brakes
• Pwr rack & pinion steering
• Rear wheel drive
• Tow hooks
• Trailer brake control
• Trailer tow wiring -inc: 4-pin connector

• Advanced multistage front airbags
• Child safety door locks
• Dual-note horn
• Front height-adjustable shoulder belts
• Front/rear side curtain airbags
• Supplemental front seat side airbags
• Supplemental side airbags

6.7L I6 CUMMINS TURBO-DIESEL ENGINE

• (STD)

• 6-SPEED AUTOMATIC TRANSMISSION W/OD -inc: 3.73 axle ratio trans oil cooler remote start system tip start
• SINGLE REAR WHEELS
• MINERAL GRAY METALLIC
• 17" X 8.0" POLISHED FORGED ALUMINUM WHEELS
• LUXURY GROUP -inc: glove box lamp auto-dimming rearview mirror dual illuminated visor vanity mirrors underhood lamp rear dome lamp w/on/off switch leather-wrapped steering wheel w/audio controls overhead console w/universal garage door opener
• UCONNECT 130 -inc: AM/FM stereo w/CD/MP3 player (STD)
• 6.7L I6 CUMMINS TURBO-DIESEL ENGINE (STD)
• 2FZ BIG HORN CUSTOMER PREFERRED ORDER SELECTION PKG -inc: 6.7L I6 turbo-diesel engine 6-speed auto trans bright/bright grille fog lamps cloth 40/20/40 premium split-bench seat 10-way pwr driver seat w/pwr lumbar front center seat cushion storage 60/40 split folding rear seat underhood lamp leather-wrapped steering wheel w/audio controls 115V aux pwr outlet Bighorn badge
• 3.73 REAR AXLE RATIO
• LT265/70R17E ALL-SEASON BSW TIRES
• SINGLE REAR WHEEL GROUP -inc: 17" x 8.0" polished forged aluminum wheels 10 100# GVWR LT265/70R17E all-season OWL tires electronic stability control
• DARK SLATE/MEDIUM GRAYSTONE INTERIOR CLOTH 40/20/40 PREMIUM SPLIT-BENCH SEAT -inc: driver pwr lumbar front center seat cushion storage rear 60/40 split-folding bench seat *w/DG7 trans-inc: storage tray*
• Turbocharged
• Locking/Limited Slip Differential
• Rear Wheel Drive
• Tow Hitch
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Windows
• Sliding Rear Window
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Satellite Radio
• Requires Subscription
• Cloth Seats
• Split Bench Seat
• Power Driver Seat
• Driver Adjustable Lumbar
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Adjustable Steering Wheel
• Immobilizer
• Trip Computer
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Cruise Control
• A/C
• Power Outlet
• Power Outlet
• Auto-Dimming Rearview Mirror
• Universal Garage Door Opener
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Side Air Bag
• Front Side Air Bag
• Child Safety Locks
• Front Head Air Bag
• Rear Head Air Bag

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: N/A
• Cooling System
• Total Cooling System Capacity (qts): 29.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5000
• Gross Axle Wt Rating - Rear (lbs): 9350
• Curb Weight - Front (lbs): 4316
• Curb Weight - Rear (lbs): 3125
• Gross Vehicle Weight Rating Cap (lbs): 11500
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1710
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: SLA Independent
• Suspension Type - Rear: Live axle
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): 9350
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.17 x 1.54
• Rear Brake Rotor Diam x Thickness (in): 14.09 x 1.34
• Tires
• Front Tire Order Code: TPY
• Rear Tire Order Code: TPY
• Spare Tire Order Code: TBB
• Front Tire Size: LT235/80R17E
• Rear Tire Size: LT235/80R17E
• Spare Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): 3085
• Rear Tire Capacity (lbs): 3085
• Spare Tire Capacity (lbs): 3085
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Revolutions/Mile @ 45 mph - Spare: 649
• Wheels
• Front Wheel Size (in): 17 x 6.0
• Rear Wheel Size (in): 17 x 6.0
• Spare Wheel Size (in): 17 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 53.2
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 169.4
• Length, Overall w/o rear bumper (in): 259.4
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 74.1
• Overhang, Front (in): 39.5
• Overhang, Rear w/o bumper (in): 50.5
• Front Bumper to Back of Cab (in): 152.0
• Cab to Axle (in): 56.8
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 33.0
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.8
• Ground Clearance, Rear (in): 7.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.3
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 60.4
• Cargo Volume (ft³): 74.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.0
• Front Hip Room (in): 63.2
• Second Head Room (in): 39.9
• Second Leg Room (in): 40.3
• Second Shoulder Room (in): 65.7
• Second Hip Room (in): 63.2
• Summary

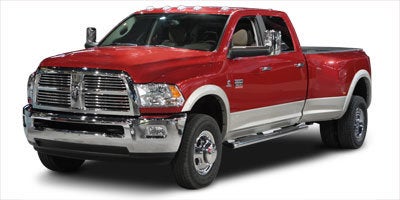

• Vehicle Name: Ram 3500
• Body Style: Crew Cab Pickup
